Raymond Mill
Summary: Raymond Mill: a stable and cost-effective grinding mill for non-metallic minerals, featuring small footprint, low investment, 0.8-9.5 t/h capacity, 80-400 mesh fineness.
Capacity: 0.8-9.5 t/h
Discharge Fineness: 1.6 - 0.038 mm
The Raymond Mill is an innovative equipment developed by Liming Heavy Industry, improving the traditional R pendulum model. Based on the proven hanging roller grinding principle and equipped with an optimized air selection system, it stably produces powders of 80-400 mesh. With its robust structure, simple operation and high versatility, it is the ideal solution for small and medium-sized grinding plants.
Mineral Processing:
Non-metallic Minerals: Limestone, calcite, marble, dolomite, barite, talc, gypsum
Chemicals: Bentonite, kaolin, phosphate, diatomaceous earth
Construction Materials: Cement raw material, clinker, slag
Others: Activated carbon, coke, coal powder

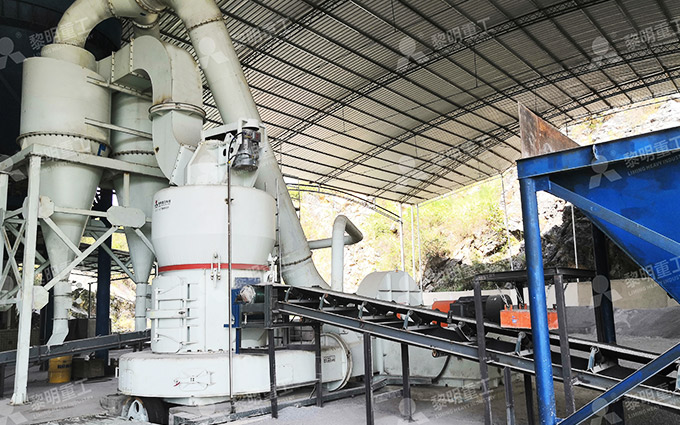

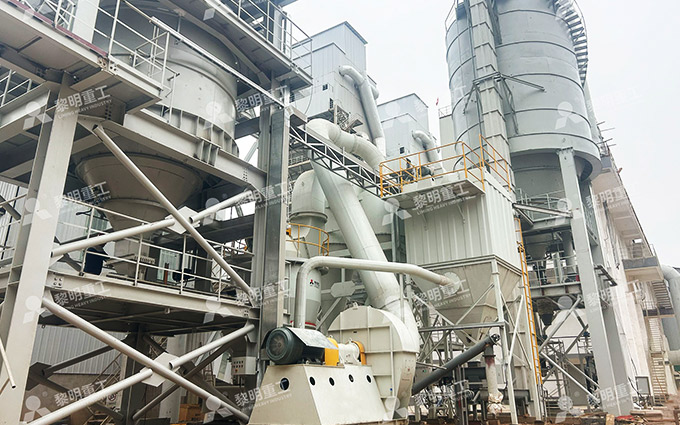

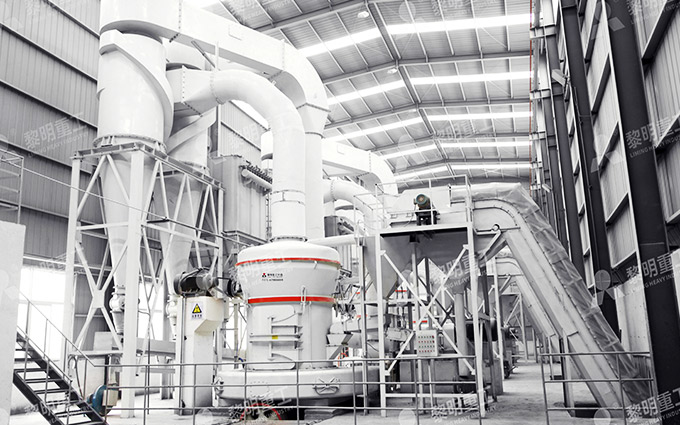

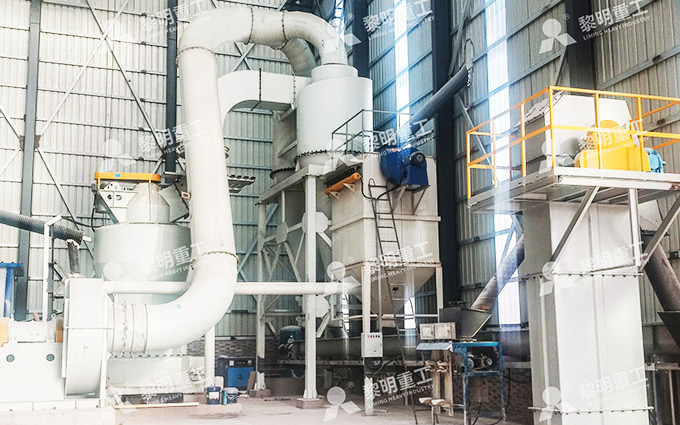

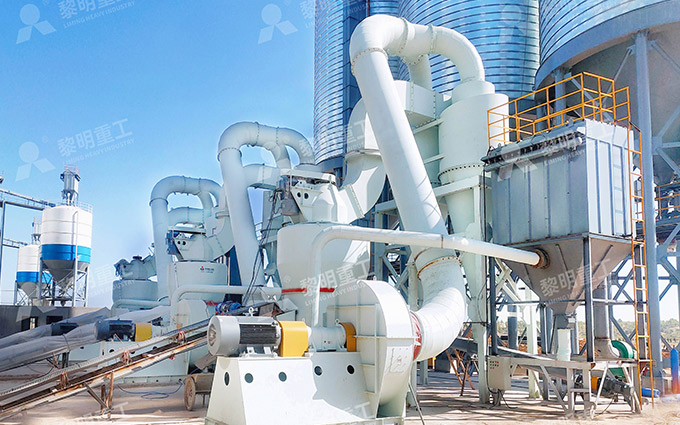

Production Line
Get a free consultation
By submitting this form, you agree to our Privacy Policy.Application
Construction: Additives for cement, construction plaster, coating powder
Chemistry: Pesticide carriers, rubber fillers, plastic additives
Metallurgy: Ore pretreatment
Energy: Preparation of desulfurizers for power plants
Agriculture: Feed additives for livestock, soil conditioners
Product Features
1. Robust structure
One-piece cast iron base for maximum stability
High-wear-resistant alloy steel rollers
2. Intelligent control
Power supply regulated by a frequency inverter
Real-time monitoring (current, temperature) with automatic alarm
3. Energy saving
New air selection system reduces aerodynamic resistance by 30%
Pulse filtration with 99.9% efficiency (environmental standards)
4. Easy maintenance
Swivel rollers for easy access
Quick replacement of wear parts
5. Versatility
Processes materials with a Mohs hardness ≤ 7
Tolerates humidity up to 6%
Working Principle
Pre-crushing: Primary crushing by jaw crusher
Conveying: Elevator → Storage hopper
Feeding: Electromagnetic vibrating feeder
Grinding:
Compression of materials between suspended rollers and a crown
Centrifugal force ensuring progressive grinding
Classification:
Separation by turboselector
Fine powder → Cyclone collector
Coarse particles → Recycling to the grinding area
Control:
Complete system under controlled vacuum
This proven technology guarantees continuous production of homogeneous powder, ideal for demanding industrial applications.
