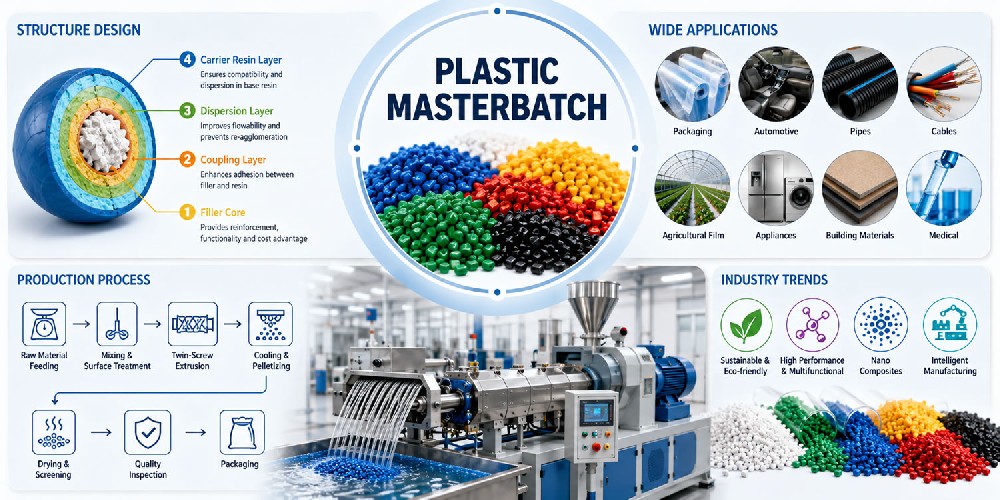

Plastic Masterbatch: Comprehensive Analysis of Structure Design, Production Process, Core Equipment, and Global Industry Trends

2026-05-26 14:36:00

We are Liming Heavy Industry, a manufacturer of various types of industrial crushers, such as Raymond Mill, Trapezoidal Mill, Vertical Mill, Ultrafine Mill, Ball Mill, etc.
Our mills can process the following minerals:
limestone, quicklime, kaolin, talc, barite, bentonite, calcium carbonate, dolomite, coal, gypsum, clay, carbon black, slag, cement raw materials, cement clinker, etc.
If you need a mill to process stone or minerals into powder, please feel free to contact me (WhatsApp: +8615333807511). Thank you.

Keywords: Plastic Masterbatch, Color Masterbatch, Filler Masterbatch, Functional Masterbatch, Twin-Screw Extruder, Calcium Carbonate Masterbatch, Polymer Modification, Plastic Additives, Plastic Compounding, Masterbatch Production Process

Abstract

Plastic masterbatch is one of the most important auxiliary materials in the modern plastics industry, widely used in packaging, automotive, household appliances, cables, agricultural films, construction materials, and engineering plastics. Essentially, it is a concentrated granular system in which pigments, fillers, or functional additives are highly dispersed within a carrier resin through compounding and pelletizing processes.

Compared with direct powder feeding, masterbatch technology significantly improves dispersion uniformity, processing stability, production cleanliness, and product consistency. It also reduces dust pollution, material waste, and operational errors during plastic processing.

As the global plastics industry moves toward high performance, lightweighting, sustainability, and intelligent manufacturing, masterbatch technology has evolved far beyond traditional coloring applications. Today, it plays a critical role in functional modification, cost optimization, material enhancement, and sustainable polymer engineering.

This article provides a systematic and industry-oriented analysis of plastic masterbatch technology from a global perspective, covering definitions, classifications, microstructure design principles, production processes, core equipment, quality control systems, and future development trends.

Chapter 1. What Is Plastic Masterbatch?

1.1 Definition of Plastic Masterbatch

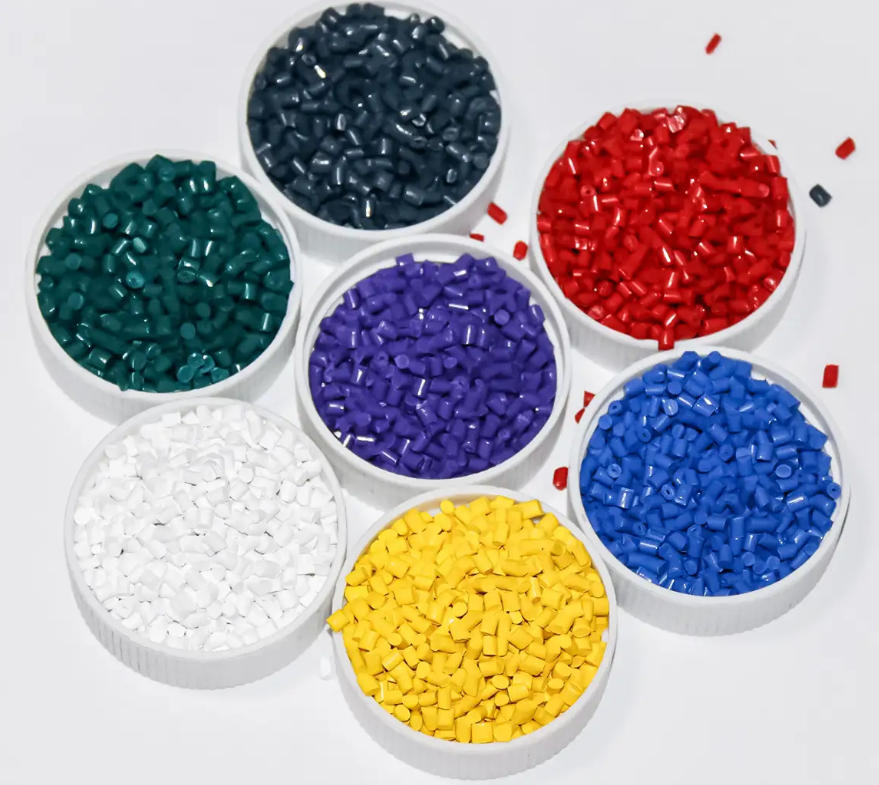

Plastic masterbatch refers to a concentrated granular material produced by uniformly dispersing pigments, fillers, or functional additives into a carrier resin through mixing, melt compounding, and pelletizing.

During downstream plastic processing operations such as injection molding, extrusion, blow molding, cast film production, and thermoforming, manufacturers only need to blend the masterbatch with base resin at a specified ratio instead of directly adding powdered additives.

This approach transfers the complex additive dispersion process from the plastic converter to a specialized masterbatch production stage, thereby improving processing efficiency and product stability.

1.2 Core Advantages of Masterbatch Technology

• Improved dispersion uniformity — Prevents pigment and filler agglomeration

• Reduced dust pollution — Cleaner and safer production environment

• Enhanced product consistency — Better color and performance stability between batches

• Simplified processing workflow — Reduces weighing and feeding errors

• Higher processing efficiency — Improves melt flow and process stability

• Functional enhancement — Enables flame retardancy, UV resistance, antibacterial properties, antistatic performance, and more

1.3 Strategic Importance of the Global Masterbatch Industry

The development level of the masterbatch industry is widely regarded as an indicator of the maturity of a country's plastics processing sector. Mature industrial economies such as the United States, Germany, Japan, and South Korea have highly specialized masterbatch technologies, while China, India, Southeast Asia, the Middle East, and Latin America are experiencing rapid market expansion and industrial upgrading.

Driven by the growth of electric vehicles, sustainable packaging, photovoltaic systems, 5G cables, modern agriculture, and biodegradable plastics, global demand for high-performance masterbatch products continues to rise.

Today, the global masterbatch market includes multiple specialized categories:

• Filler Masterbatch — Uses minerals such as calcium carbonate and talc to reduce costs and improve rigidity

• Color Masterbatch — Provides coloring and color management for plastic products

• Flame Retardant Masterbatch — Meets fire safety standards in cables, construction, and automotive applications

• Antistatic and Conductive Masterbatch — Used in electronic packaging and industrial applications

• UV Masterbatch — Improves weather resistance and outdoor durability

• Antibacterial Masterbatch — Applied in medical, food packaging, and appliance industries

• Agricultural Film Masterbatch — Provides anti-fog, heat preservation, and light conversion functions

• Biodegradable Plastic Masterbatch — Designed for PLA, PBAT, and other bio-based polymers

Chapter 2. Structure Design and Formulation Principles of Plastic Masterbatch

High-quality masterbatch is not simply a physical mixture of additives and resin. Instead, it is a highly engineered composite system designed based on interface chemistry, polymer compatibility, rheology, and dispersion science.

A typical functional masterbatch generally consists of four key structural layers:

2.1 Filler Core Layer

The filler core determines the cost structure, reinforcement performance, and functional properties of the masterbatch.

Main functions:

• Improve rigidity and dimensional stability

• Reduce resin consumption and raw material cost

• Enhance heat resistance

• Achieve lightweighting or special functionalities

Common inorganic fillers:

• Calcium Carbonate (CaCO₃)

• Talc

• Kaolin

• Wollastonite

• Magnesium Hydroxide / Aluminum Hydroxide

• Glass Microspheres

• Fly Ash Hollow Microspheres

Among these materials, ultrafine ground calcium carbonate remains one of the most widely used mineral fillers in the global filler masterbatch industry.

2.2 Coupling and Interface Layer

Most inorganic fillers are hydrophilic, while polyolefin resins such as PE and PP are hydrophobic. Therefore, coupling agents are essential for improving interface compatibility.

Common coupling agents include:

• Titanate coupling agents

• Silane coupling agents

• Aluminate coupling agents

• Phosphate ester modifiers

Proper surface modification significantly improves filler dispersion, interface adhesion, and mechanical performance.

Poor coupling treatment may cause:

• Pellet breakage

• White spots on products

• Reduced tensile strength

• Processing instability

• Filler agglomeration

2.3 Dispersion Layer

The dispersion layer reduces particle agglomeration and improves melt flow behavior during extrusion and pelletizing.

Typical dispersing agents include:

• Stearic Acid

• Zinc/Calcium/Magnesium Stearate

• Polyethylene Wax (PE Wax)

• Low-molecular-weight Polypropylene

Optimized dispersion systems can significantly improve processing efficiency and final product appearance.

2.4 Carrier Resin and Compatibilization Layer

The carrier resin acts as the matrix that encapsulates fillers and additives while ensuring compatibility with the final plastic product.

Carrier resin selection principles:

• Compatible with the target polymer system

• Appropriate melting point and melt flow index (MFI)

• Good wetting and encapsulation capability

• Stable thermal processing performance

Common carrier resins:

• PP (Polypropylene)

• LDPE / LLDPE / HDPE

• EVA

• PE-g-MAH / PP-g-MAH compatibilizers

Through this multilayer structural design, masterbatch technology achieves the transformation of inorganic fillers into highly compatible polymer systems, which directly determines the appearance, mechanical properties, and processing stability of final plastic products.

Chapter 3. Plastic Masterbatch Production Process and Core Equipment

3.1 Traditional Production Methods and Limitations

Early masterbatch manufacturing mainly relied on the following methods:

1. Two-Roll Mill Mixing — Repeated mixing on heated rollers followed by cooling and pelletizing

2. Banbury Internal Mixing — High-shear compounding followed by extrusion pelletizing

3. Direct Extrusion Compounding — Pre-mixed powder materials processed through single or twin-screw extruders

However, traditional processes often suffer from:

• Insufficient dispersion quality

• Weak filler-resin interface bonding

• Complex processing procedures

• High energy consumption

• Limited suitability for high-end functional masterbatch

3.2 Modern Masterbatch Manufacturing Technologies

To overcome these limitations, the industry has developed advanced technologies such as:

• High-flow carrier resin pre-treatment

• Polymer encapsulation technology

• Liquid-phase premixing processes

• Reactive compatibilization during extrusion

• Nanostructure self-assembly technologies

Among these technologies, reactive extrusion using co-rotating twin-screw extruders has become the mainstream solution for medium- and high-end masterbatch production.

3.3 Standard Industrial Production Process

A modern masterbatch production line generally follows the workflow below:

Raw Material Feeding and Weighing
↓
Automatic Dosing System
↓
High-Speed Mixing / Surface Treatment
↓
Twin-Screw Extrusion Compounding
↓
Vacuum Degassing and Melt Filtration
↓
Cooling and Pelletizing
↓
Drying and Screening
↓
Laboratory Quality Inspection
↓
Automatic Packaging and Storage

Twin-Screw Extruders are now considered the core equipment of the modern masterbatch industry due to their:

• Strong shear mixing capability

• Excellent devolatilization performance

• Flexible modular screw configuration

• Stable continuous production

Underwater pelletizing systems are increasingly used for high-end color and additive masterbatch production because they produce uniform pellets with lower dust generation.

Chapter 4. Critical Quality Control Factors

The quality of masterbatch products depends heavily on process control and formulation precision.

For color masterbatch, thermal stability, migration resistance, and filter pressure value are especially important. For flame-retardant masterbatch, the decomposition temperature of flame retardants must match the extrusion processing window.

Chapter 5. Global Applications and Future Industry Trends

5.1 Expanding Applications

• Packaging Films — Cost reduction and improved film performance

• Automotive Interiors — Low VOC and flame-retardant solutions

• Pipes and Construction Materials — High-filler calcium carbonate systems

• Agricultural Films — UV stabilization and anti-fog functionalities

• Calcium-Plastic Products — Wood and paper replacement applications

5.2 Future Development Trends

1. High-Concentration Multifunctional Masterbatch

Integrated systems combining filling, coloring, and functional additives will reduce formulation complexity and improve production efficiency.

2. Green and Low-Dust Manufacturing

Closed conveying systems, centralized dust collection, and environmentally friendly processing technologies are becoming industry standards.

3. Bio-Based and Biodegradable Carrier Resins

Demand for PLA and PBAT-compatible masterbatch is rapidly increasing with the expansion of sustainable plastics.

4. Nano-Composite Masterbatch

Nano calcium carbonate, nano titanium dioxide, graphene, and carbon nanotube masterbatch systems are becoming important in conductive, antibacterial, and UV-resistant applications.

5. Intelligent Manufacturing and Digital Quality Control

Online color measurement, NIR analysis, AI-based process optimization, and automated quality monitoring are gradually transforming modern masterbatch production.

Conclusion

Plastic masterbatch has evolved from a simple coloring material into a highly engineered polymer modification system that integrates functional enhancement, cost optimization, and advanced material design.

The upper performance limit of masterbatch products depends on interface engineering, compatibilization technology, and dispersion system design, while the lower limit is determined by process control, extrusion technology, and pelletizing quality.

For plastic processors, selecting compatible masterbatch systems with appropriate carrier resins, thermal stability, and dispersion characteristics is critical for ensuring product appearance, mechanical performance, and long-term processing stability.

As formulation science, compounding technology, and intelligent manufacturing continue to advance, plastic masterbatch will remain one of the most important enabling technologies driving the global plastics industry toward higher performance, greater functionality, and more sustainable development.
