Feedstock handling
Coal, carbonized coconut shell, wood char or biomass-derived material is crushed, dried, screened or prepared for the next process stage.
Home - Powder Processing for Activated Carbon
Activated Carbon Grinding Solutions for PAC and Pellet Carbon Production
MTW European Trapezium Grinding Mills and LM Vertical Roller Mills support controlled powder preparation for coal, carbonized coconut shell, biomass char and dried activated carbon.
Engineered for Carbon Materials
Grinding where particle size determines product performance
Activated carbon is not a single product. Powdered activated carbon, granular grades and pelletized products each require a different route for crushing, screening, grinding and classification. Our solutions focus on the stages where controlled powder preparation adds measurable production value.
PACFine powder production and classification
MTWFlexible medium-capacity milling
LMCentralized high-capacity grinding
Process Understanding
From carbonaceous feedstock to finished activated carbon
Grinding is applied before or after thermal treatment according to the feedstock and required product form. MTW and LM mills are positioned at the powder-preparation stages—not as substitutes for carbonization or activation equipment.
Fine powder preparation
MTW or LM milling supports feedstock powder preparation for forming, briquetting, extrusion or controlled carbon powder production.
Carbonization & activation
Dedicated furnaces or kilns create carbon-rich char and develop the pore structure needed for adsorption applications.
Washing & drying
Activated material may be washed, neutralized and dried before final crushing, sizing or powder processing.
PAC, pellets or granules
Final sizing delivers powdered activated carbon, granular grades or fine powder for pelletized and briquetted carbon products.
Equipment Selection
Two milling platforms for different activated carbon production targets
Select the grinding platform based on product type, required fineness, production capacity, feed condition, plant layout and powder-handling requirements.
Flexible Powder Processing

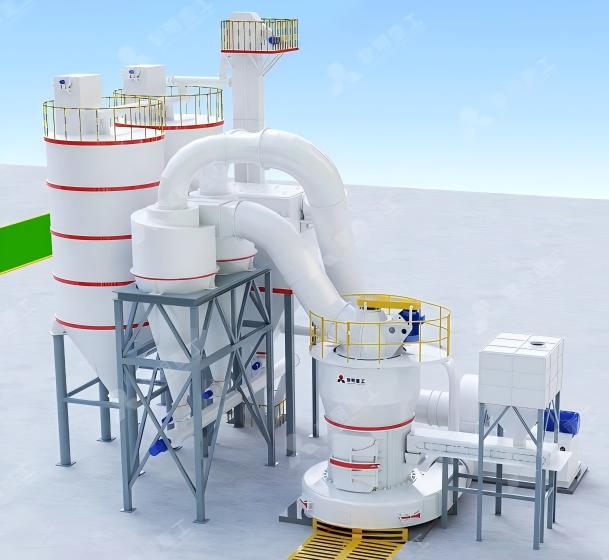

MTW European Trapezium Grinding Mill
A practical configuration for medium-capacity powdered activated carbon production, activated carbon fines processing and fine powder preparation before pelletizing or briquetting.
- Flexible PAC grades
- Independent grinding unit
- Fine powder for forming
- Collection & packing integration
Large-Scale Continuous Grinding

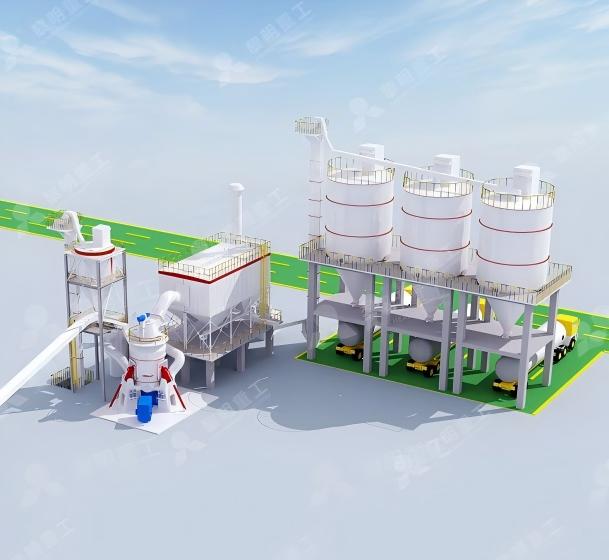

LM Vertical Roller Mill
A centralized solution for high-throughput carbonaceous powder preparation and continuous powdered activated carbon production with coordinated classification, collection and storage.
- High-capacity projects
- Centralized powder line
- Continuous operation
- Integrated plant layout
Where Milling Adds Value
Built around the product route—not a generic mill recommendation
A suitable activated carbon grinding system starts with the actual material and target product. The same plant may process coal, carbonized shell, char or dried activated carbon, but each requires its own evaluation.
- Coal powder for pellet and briquette carbon preparation
- Carbonized coconut shell powder processing

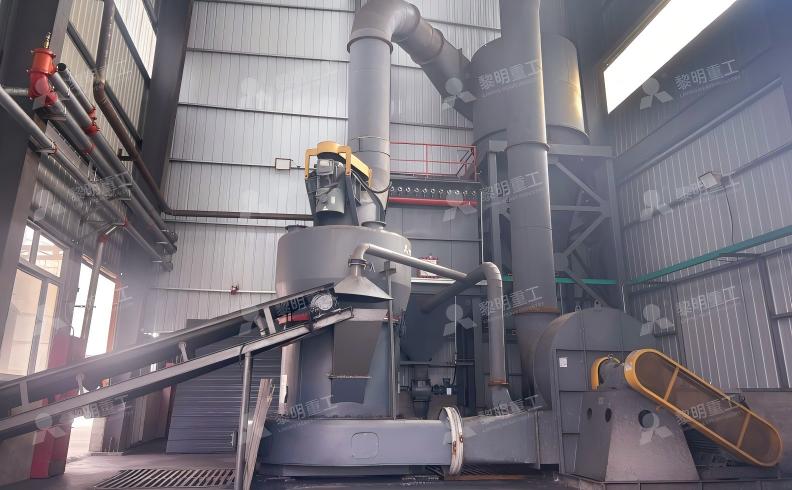

- Dried activated carbon grinding for PAC production
- Activated carbon fines recovery and reprocessing
- Fine carbon powder before binder mixing and extrusion
- Classified powder collection, storage and packing
Application References
Grinding applications for activated carbon preparation
Explore grinding applications for coal, coconut shell, wood, and other raw materials used in activated carbon production. Each application demonstrates how suitable grinding equipment can help achieve the required powder fineness and production capacity.
Verified Project Reference

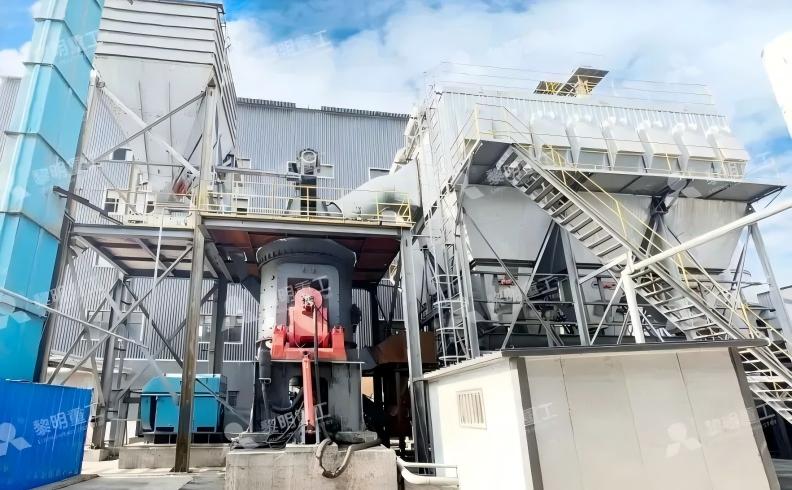

Coal Powder Preparation for Activated Carbon Production
Coal is ground to the required fineness for activated carbon production, providing a stable and continuous powder supply for subsequent carbonization or activation.
Verified Project Reference

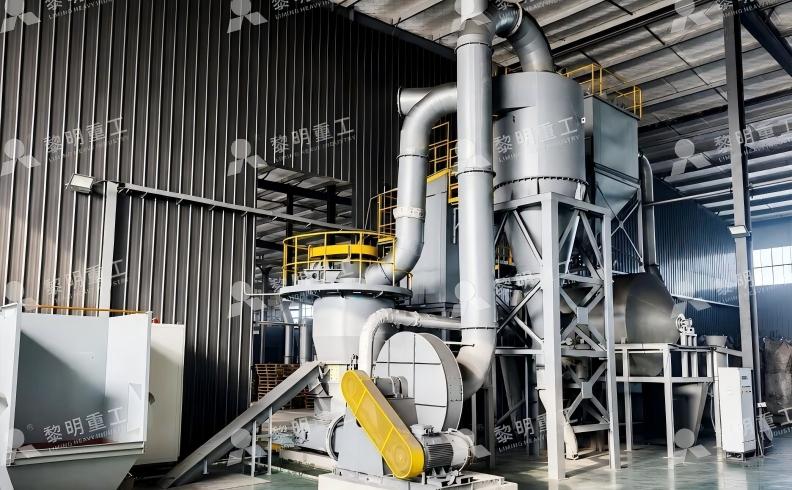

Carbonized Coconut Shell Powder Processing
Carbonized coconut shell is ground to the required fineness for activated carbon production, providing a stable and continuous powder supply for subsequent activation.
Verified Project Reference
Carbonized Wood Powder Processing
Carbonized wood is ground to the required fineness for activated carbon production, providing consistent powder for subsequent activation and stable downstream processing.
Mill Selection Guide
Choose MTW or LM according to the production task
| Production Requirement | Recommended Direction | Why It Fits |
|---|---|---|
| Medium-capacity PAC line | MTW European Trapezium Grinding Mill | Flexible configuration for dried activated carbon, fines processing and controlled powder grades. |
| Multiple PAC specifications | MTW European Trapezium Grinding Mill | Suitable for independent powder-processing lines that need practical fineness adjustment and product changeovers. |
| Large coal-based carbon project | LM Vertical Roller Mill | Designed for centralized, continuous powder preparation at industrial scale. |
| High-volume PAC production | LM Vertical Roller Mill | Supports integrated grinding, classification, collection, storage and coordinated downstream handling. |

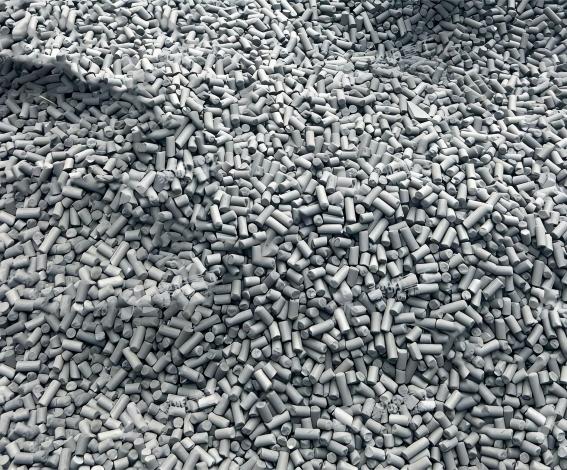

| Pelletized or briquetted carbon | MTW or LM, project-dependent | Fine powder is prepared before binder mixing, briquetting or extrusion; selection depends on throughput and layout. |

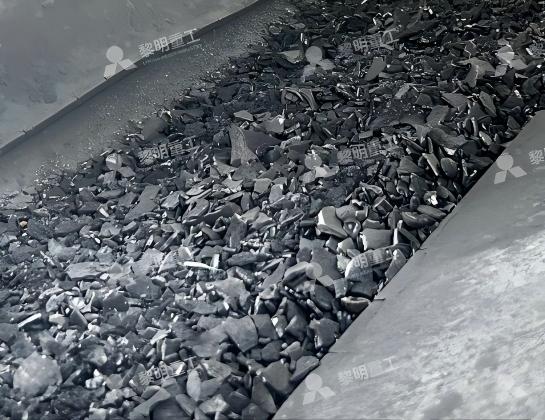

| Granular activated carbon | Crushing and screening first | GAC normally requires defined granular sizing; milling is used only where fines or powder grades are required. |
Technical Resource Center
Activated carbon processing articles
This resource set covers production routes, particle-size control, equipment selection and powder-handling considerations.
01
Activated Carbon Manufacturing Process: From Raw Material to Finished Product
→ 02Powdered Activated Carbon Production Process and Particle Size Control
→ 03Activated Carbon Grinding Mill: How to Choose the Right Equipment
→ 04MTW European Trapezium Grinding Mill for Activated Carbon Powder
→ 05LM Vertical Roller Mill for Activated Carbon Powder Production
→ 06Powdered Activated Carbon vs Granular Activated Carbon: Processing Differences
→ 07How Activated Carbon Particle Size Affects PAC Applications
→ 08Coal-Based Activated Carbon Production and Powder Preparation
→ 09Coconut Shell Activated Carbon Processing and Powder Preparation
→ 10Pelletized Activated Carbon Manufacturing: Grinding, Mixing and Extrusion
→ 11Activated Carbon Grinding Safety: Dust Collection and Powder Handling
→ 12Activated Carbon Powder Production Line: Equipment and Process Layout
→ 13How to Select an Activated Carbon Grinding Plant: Capacity, Fineness and Moisture
→ 14Activated Carbon Fines Recovery and Reprocessing Options
→ 15Dust Collection Systems for Activated Carbon Powder Plants
→ 16Coal Powder Preparation for Pellet Activated Carbon Production
→ 17Activated Carbon Powder Storage, Conveying and Packing
→ 18MTW vs LM Mill for Activated Carbon: Which Solution Fits Your Project?
→

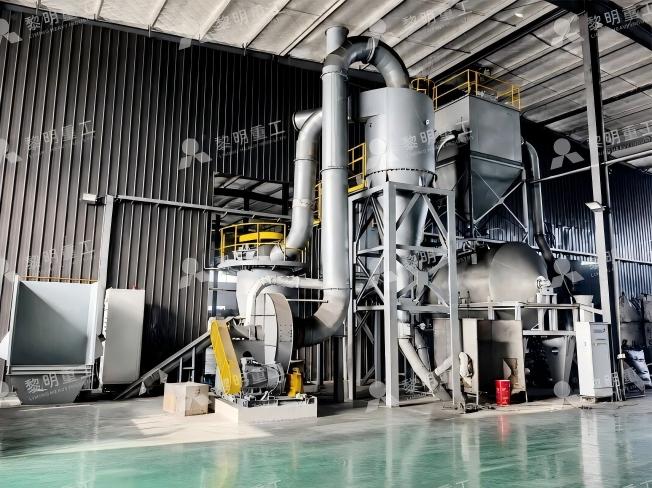

Complete Powder Handling
Plan the mill as part of a controlled powder system
Activated carbon powder processing requires more than grinding capacity. Plant design should account for feed stability, sealed transfer, powder collection, storage, packaging and project-specific process-safety measures.
- Enclosed material conveying
- Negative-pressure dust collection
- Grounding and conductive connections
- Temperature and bearing monitoring
- Finished powder silo and packing integration
- Project-specific explosion protection review
Frequently Asked Questions
Activated carbon grinding mill FAQ
What is the role of a grinding mill in activated carbon production?
Grinding mills are used for carbonaceous feedstock preparation, powdered activated carbon production and fine powder preparation before pelletizing or briquetting. Carbonization and activation are completed by dedicated thermal equipment, while the grinding system controls particle size before or after these stages.
Can MTW European Trapezium Grinding Mill grind activated carbon?
MTW European Trapezium Grinding Mill can be configured for grinding dried activated carbon or activated carbon fines into powdered activated carbon grades. The final configuration depends on feed size, moisture, target fineness, capacity and powder-handling requirements.
When should an LM Vertical Roller Mill be selected for activated carbon powder?
LM Vertical Roller Mill is generally considered for larger, continuous activated carbon powder projects that require centralized grinding, stable high-throughput production, integrated classification and connection with dust collection, storage and packing systems.
Is grinding required for granular activated carbon?
Not always. Granular activated carbon is commonly produced by crushing and screening into defined particle-size ranges. Deep grinding is mainly used for powdered activated carbon, fines recovery or fine powder preparation before pelletizing and briquetting.
What information is needed to select an activated carbon grinding mill?
Key information includes feedstock type, material condition, inlet size, moisture, hardness, ash content, required final fineness, capacity, final product form, existing equipment and applicable local safety requirements.
Can MTW and LM mills be used before carbonization or activation?
They can be considered for fine preparation of suitable carbonaceous feedstocks before binder mixing, briquetting, extrusion or other forming stages. The preferred route depends on the raw material and intended final product.
Does finer activated carbon powder always provide better adsorption?
Not necessarily. Performance depends on pore structure, surface chemistry, ash content, particle-size distribution, contact time and the intended application. The goal is a consistent, application-appropriate particle-size distribution rather than the finest possible powder.
What dust-control measures are needed for activated carbon grinding?
A complete system should evaluate enclosed conveying, negative-pressure operation, dust collection, grounding, conductive connections, temperature monitoring, safe storage and project-specific explosion protection. The exact design depends on material characteristics and applicable regulations.
Can a complete activated carbon powder line include collection and packing?
A powder-processing solution can be planned around feeding, grinding, classification, dust collection, storage, conveying and packing. Upstream carbonization, activation, washing and drying equipment should be coordinated according to the selected production route.
Start With Your Material Data
Get an MTW or LM grinding solution for your activated carbon project
Send your raw material, feed size, moisture, required fineness, production capacity and final product type. Our technical team will help identify the appropriate grinding and powder-handling configuration.
