Mineral Powder Processing for Wall Putty

Grinding, classification and powder-handling systems for mineral raw materials used in wall putty formulations. The process is planned around the mineral, feed condition, required powder specification and production rate.

Discuss Your Material View the Process

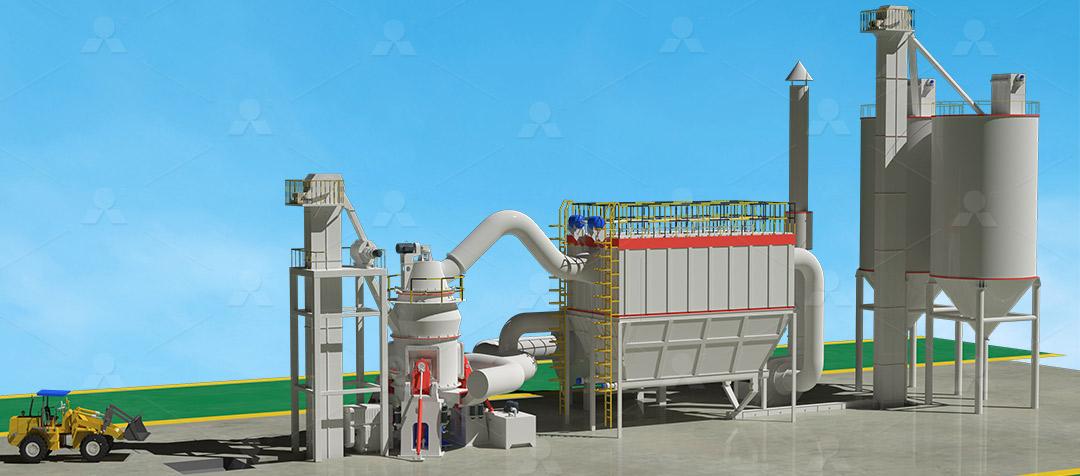

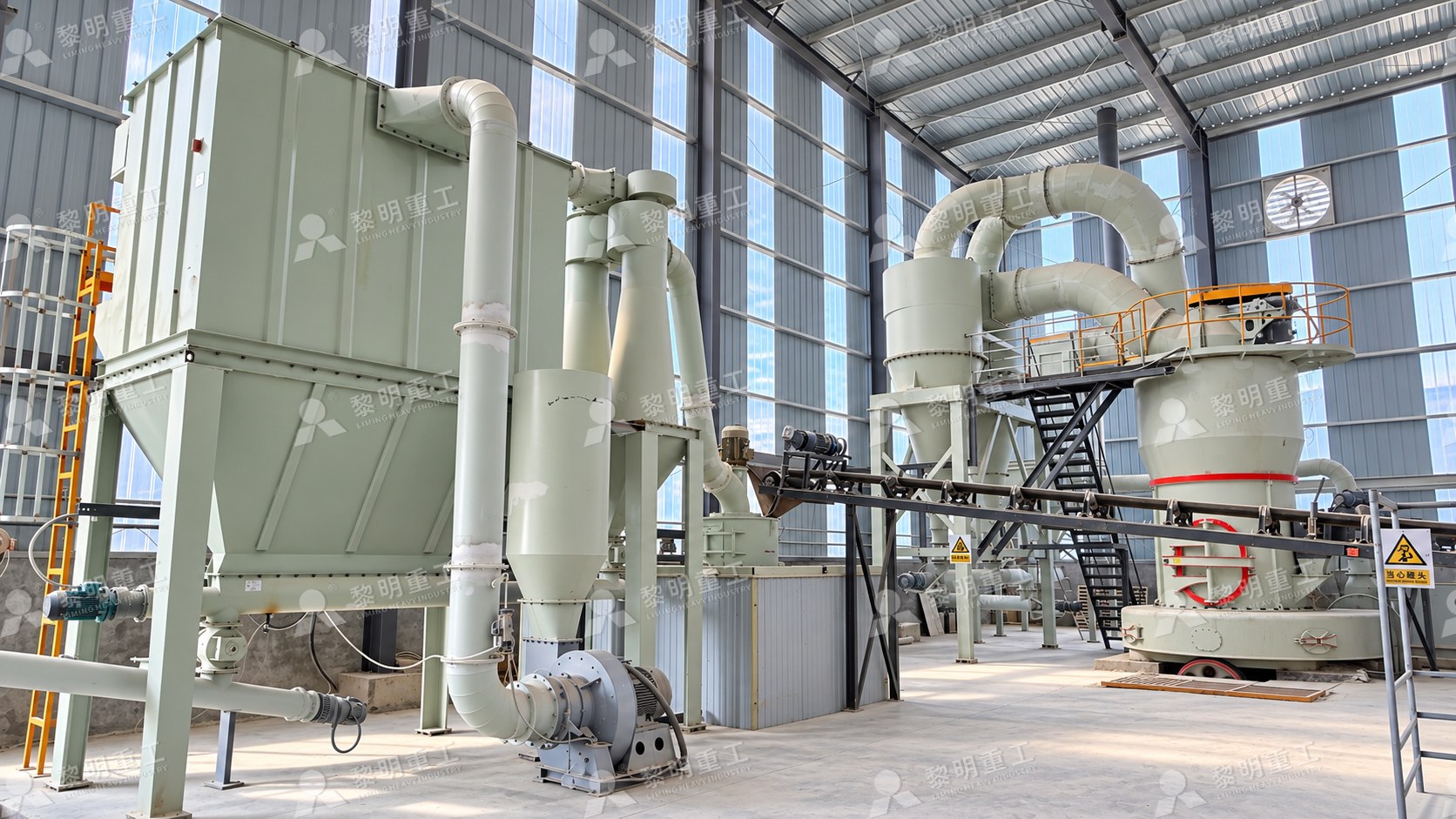

Mineral powder grinding plant for wall putty raw materials — Mineral powder production

01 · Raw materials

Minerals Used in Wall Putty Formulations

Different formulations use different mineral ingredients. The materials below are examples of powders that may be considered; they are not interchangeable, and the correct choice must be established for the target formulation.

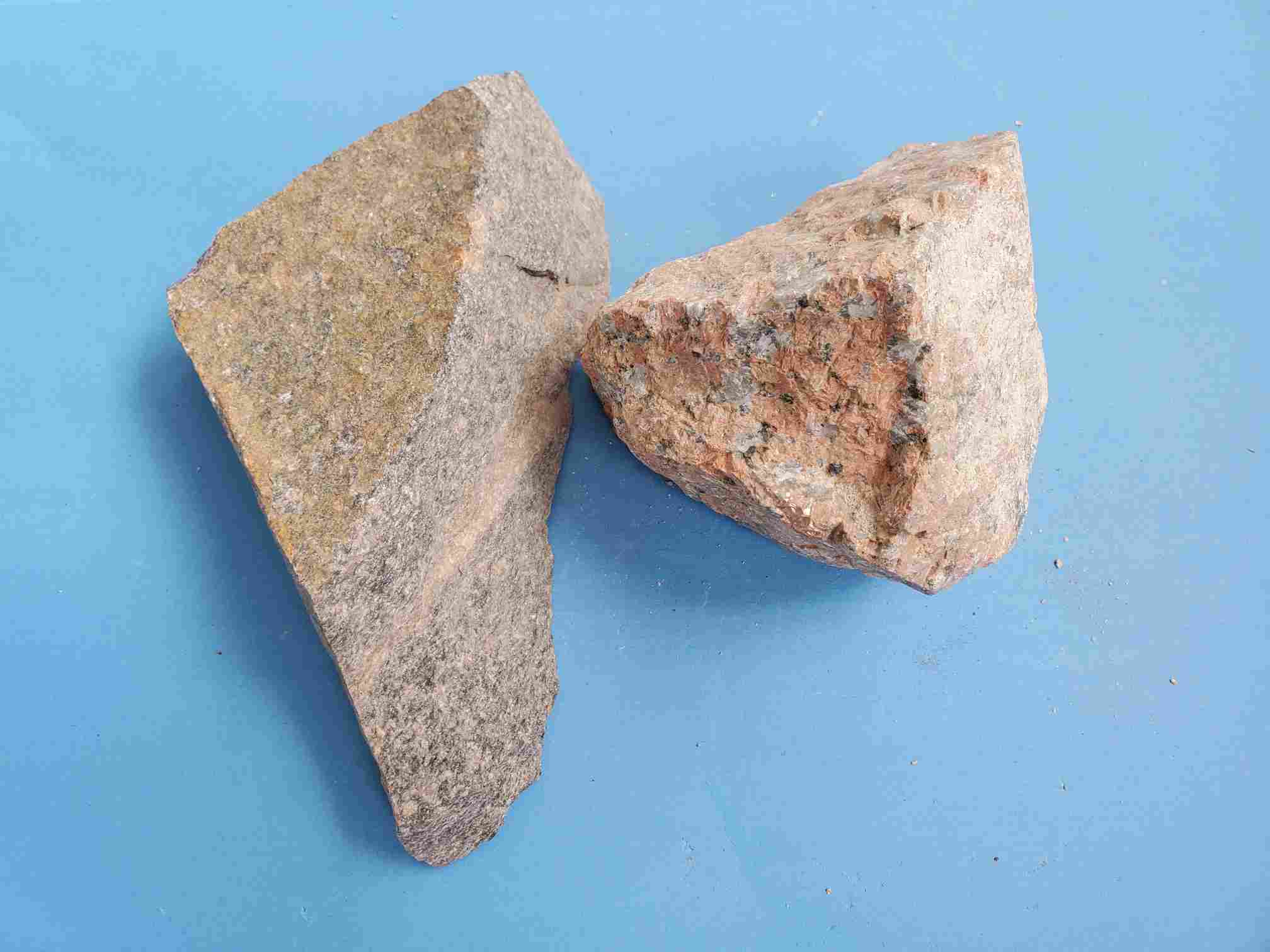

Calcium carbonate and limestone raw material

Calcium Carbonate / Limestone

Common mineral filler options. Grinding targets should be set from the required product grade and particle-size distribution.

Process focus: feed size, fineness, whiteness, moisture and consistency.

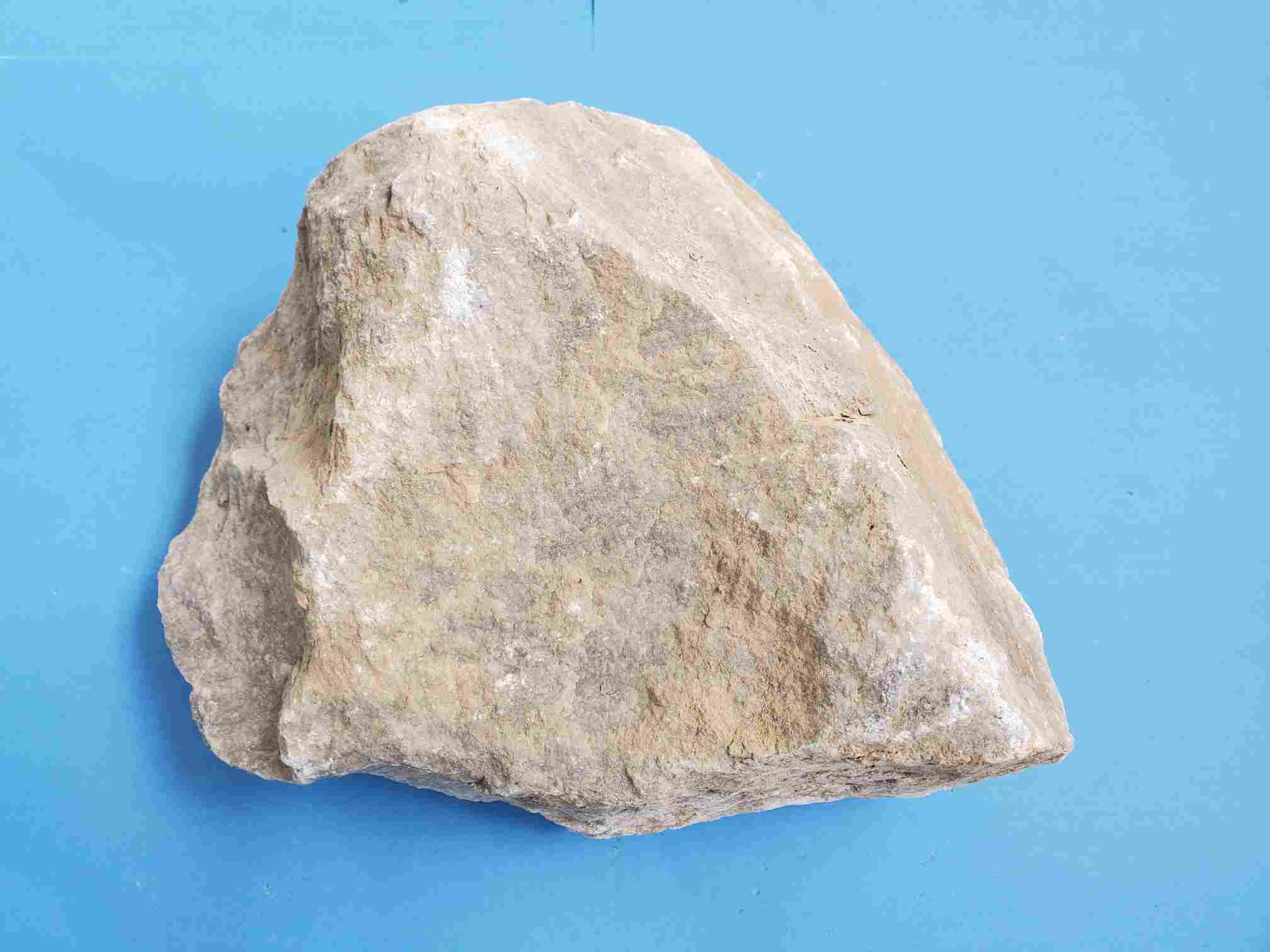

Dolomite

May be used in selected mineral powder formulations where its composition and product characteristics are appropriate.

Process focus: mineral composition, grindability and required powder specification.

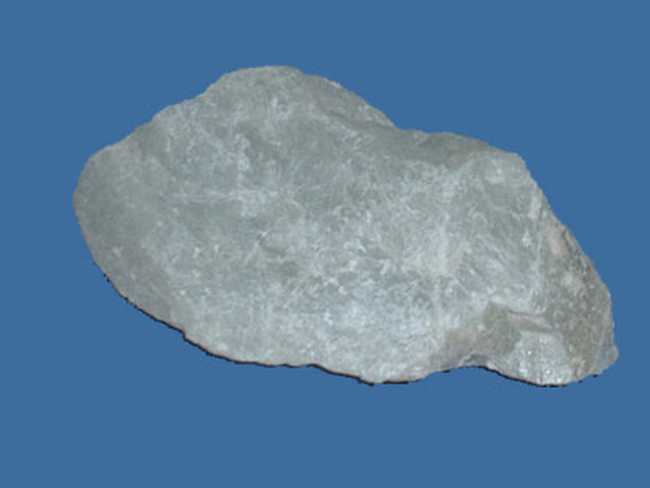

Talc and Kaolin

Specialty mineral ingredients considered for specific formulation requirements. Their particle characteristics and processing behavior differ from carbonate minerals.

Process focus: material properties, particle characteristics and any specified thermal treatment.

02 · Product specification

Define the Powder Before Selecting the Mill

A useful equipment selection begins with a clear product target. Mesh alone may not describe the full particle-size distribution or the quality requirements.

Particle sizeTarget fineness and distribution, including any coarse-particle limit.
Material compositionMineral grade, impurities and relevant quality limits.
Color / whitenessAcceptable appearance and contamination control requirements.
MoistureIncoming moisture and whether a separate drying stage is necessary.
CapacityRequired hourly output at the specified product quality.
ConsistencyRaw material variation and how product quality will be checked.

03 · Process route

From Mineral Feed to Finished Powder

A typical mineral grinding circuit may include the following stages. The actual layout is determined by feed size, moisture, mineral properties, target fineness and capacity.

STAGE 01

Feed Preparation

Check raw material condition and remove unsuitable material as required.

STAGE 02

Crushing, if Needed

Reduce oversized feed to a size accepted by the selected mill.

STAGE 03

Controlled Feeding

Provide a stable feed to the grinding system.

STAGE 04

Grinding

Reduce the mineral to the specified particle size.

STAGE 05

Classification

Separate product by size where the circuit requires it.

STAGE 06

Collection & Transfer

Collect powder and transfer it to storage or packing.

Process boundary: Drying, beneficiation, calcination, gypsum dehydration and lime slaking are distinct, material-specific operations. They are included only when the raw material and product specification call for them—not as automatic stages in a standard grinding line.

04 · Grinding equipment

Mill Families for Mineral Powder Production

Liming Heavy Industry offers several grinding mill families. The appropriate model depends on feed conditions, material properties, required fineness, capacity and plant arrangement; the descriptions below are selection starting points, not a final equipment recommendation.

Conventional fine grinding

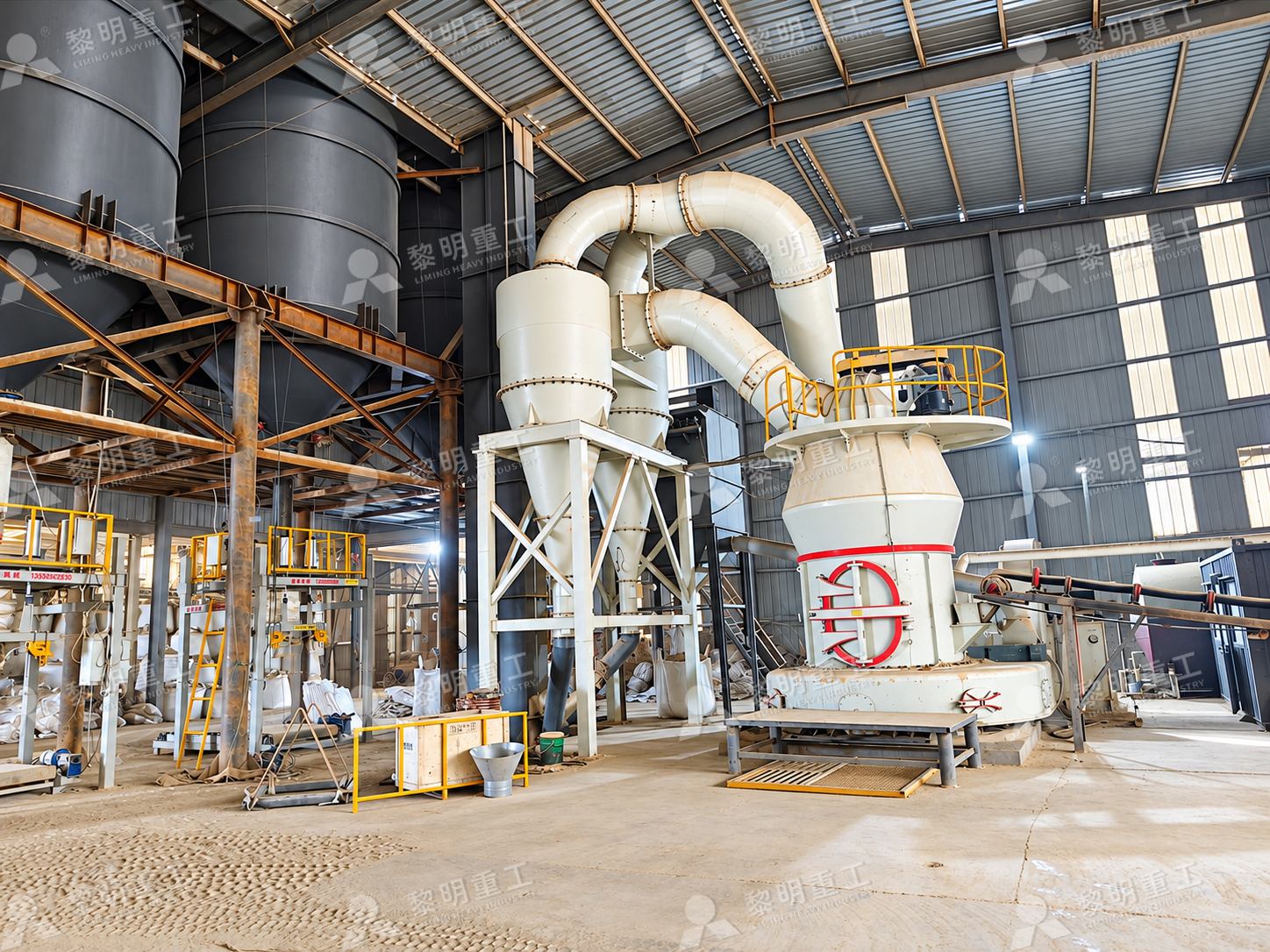

MTW Type Grinding Mill

Evaluate for suitable conventional mineral powder duties when the feed and product requirements fit the mill configuration.

Confirm feed size and moisture.
Specify throughput and product distribution.
Review system auxiliaries and wear considerations.

Vertical grinding system

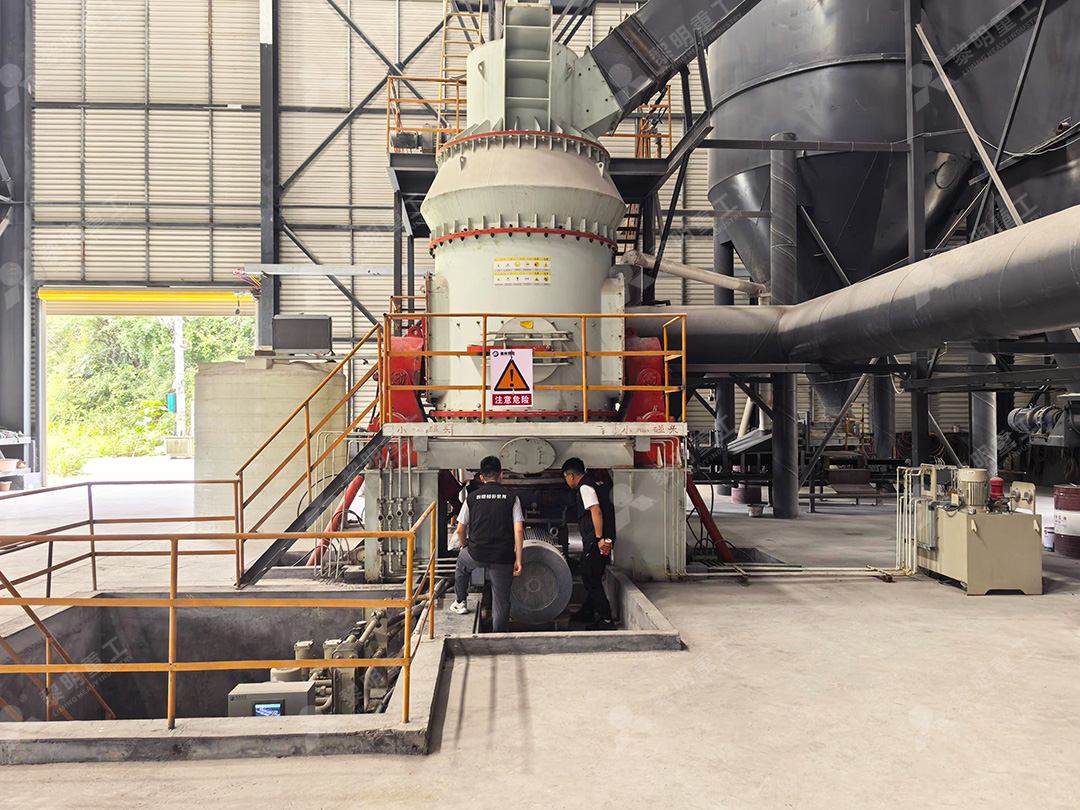

LM Vertical Grinding Mill

Assess for mineral grinding applications where capacity, layout and product requirements suit a vertical mill system.

Check grindability and feed characteristics.
Confirm capacity and fineness target.
Assess drying needs and auxiliary equipment.

Ultrafine powder

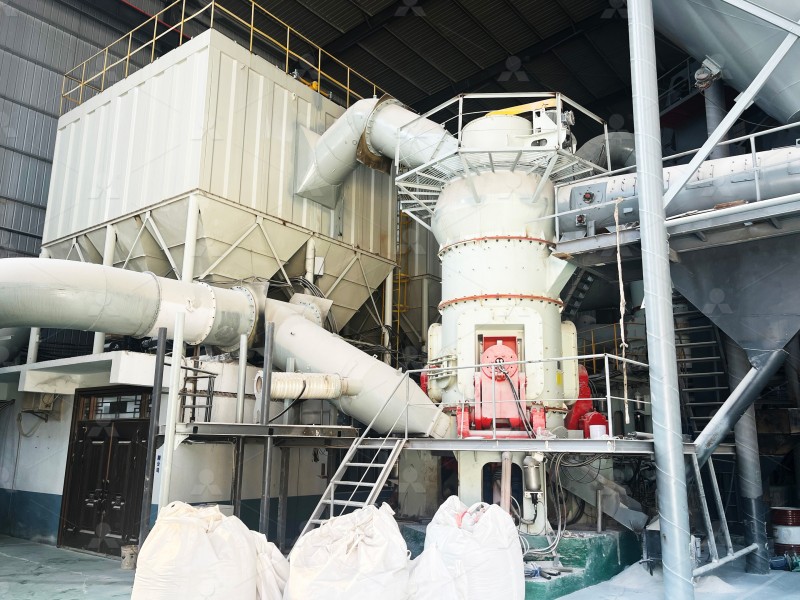

LUM Ultrafine Vertical Mill

Consider when the required powder is ultrafine and the mineral is suitable for this grinding approach.

Define fineness and output rate.
Review material characteristics and classification.

Micro powder processing

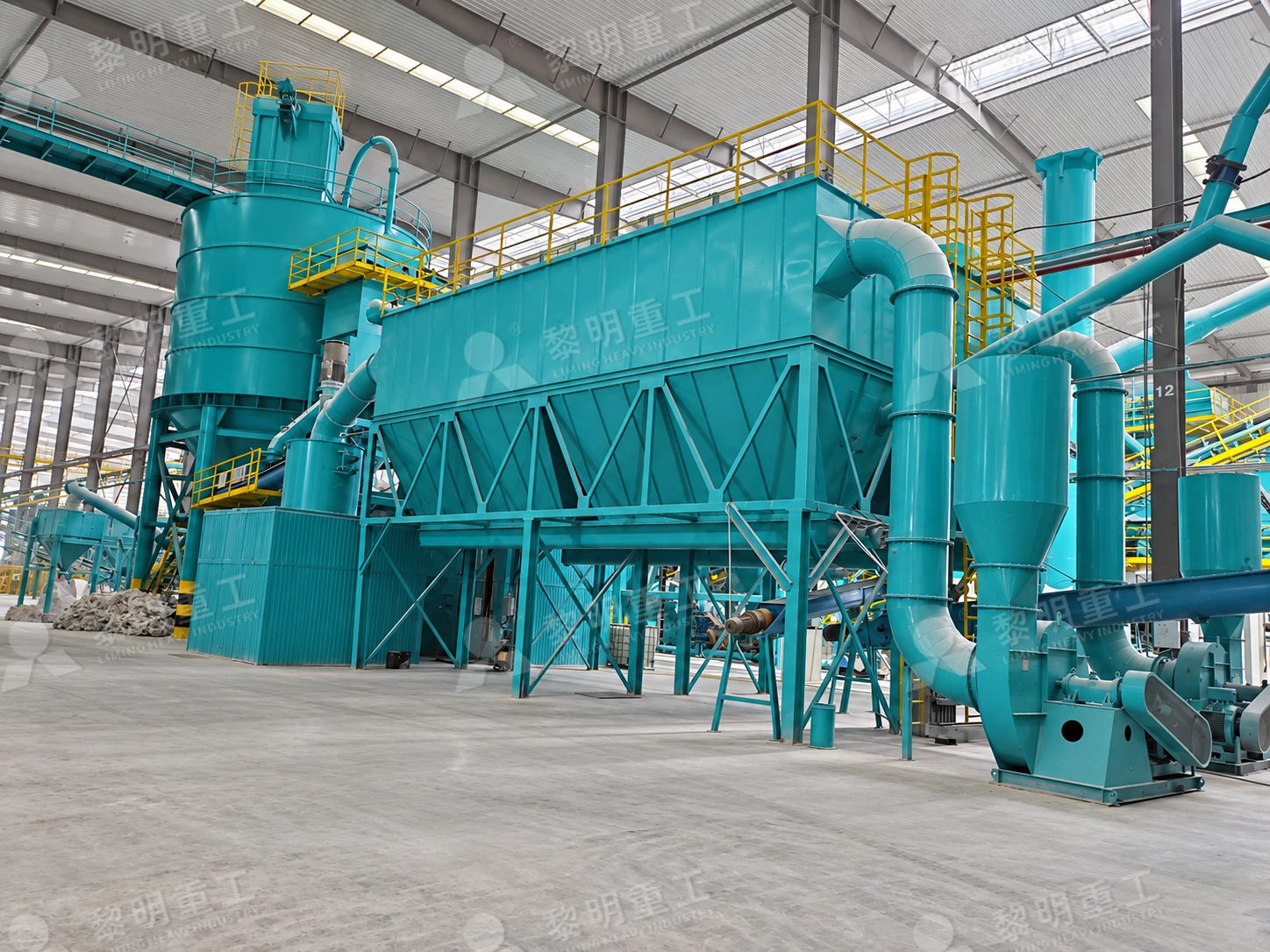

MW Micro Powder Mill

Evaluate for appropriate micro-powder duties after confirming the target particle size and capacity.

Specify particle-size distribution.
Check abrasiveness and feed condition.

Conventional powder grinding

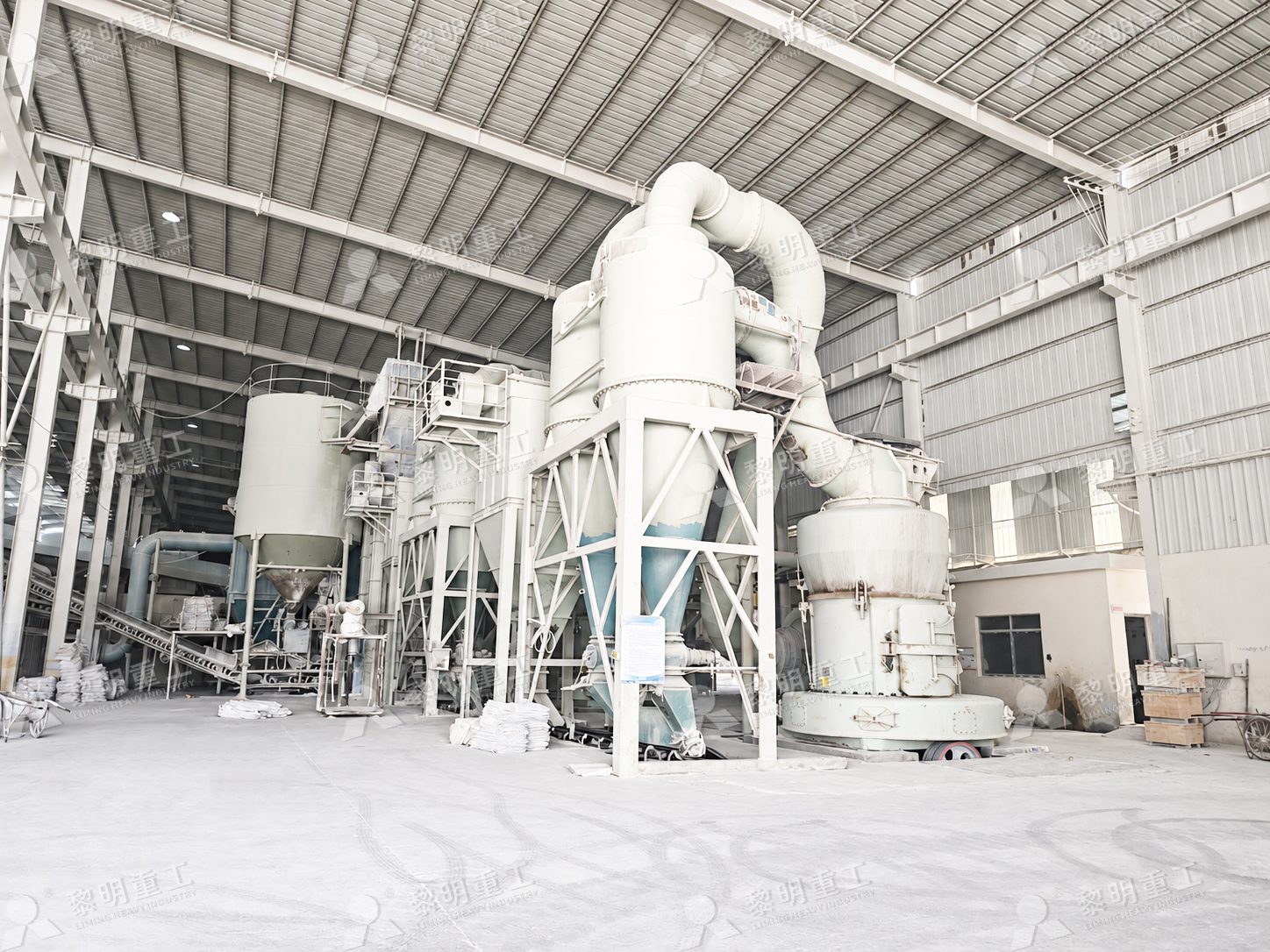

R Raymond Mill

A mill family to consider for compatible conventional powder applications following a review of feed and product data.

Confirm feed size and fineness.
Review throughput and site conditions.

Grinding circuit option

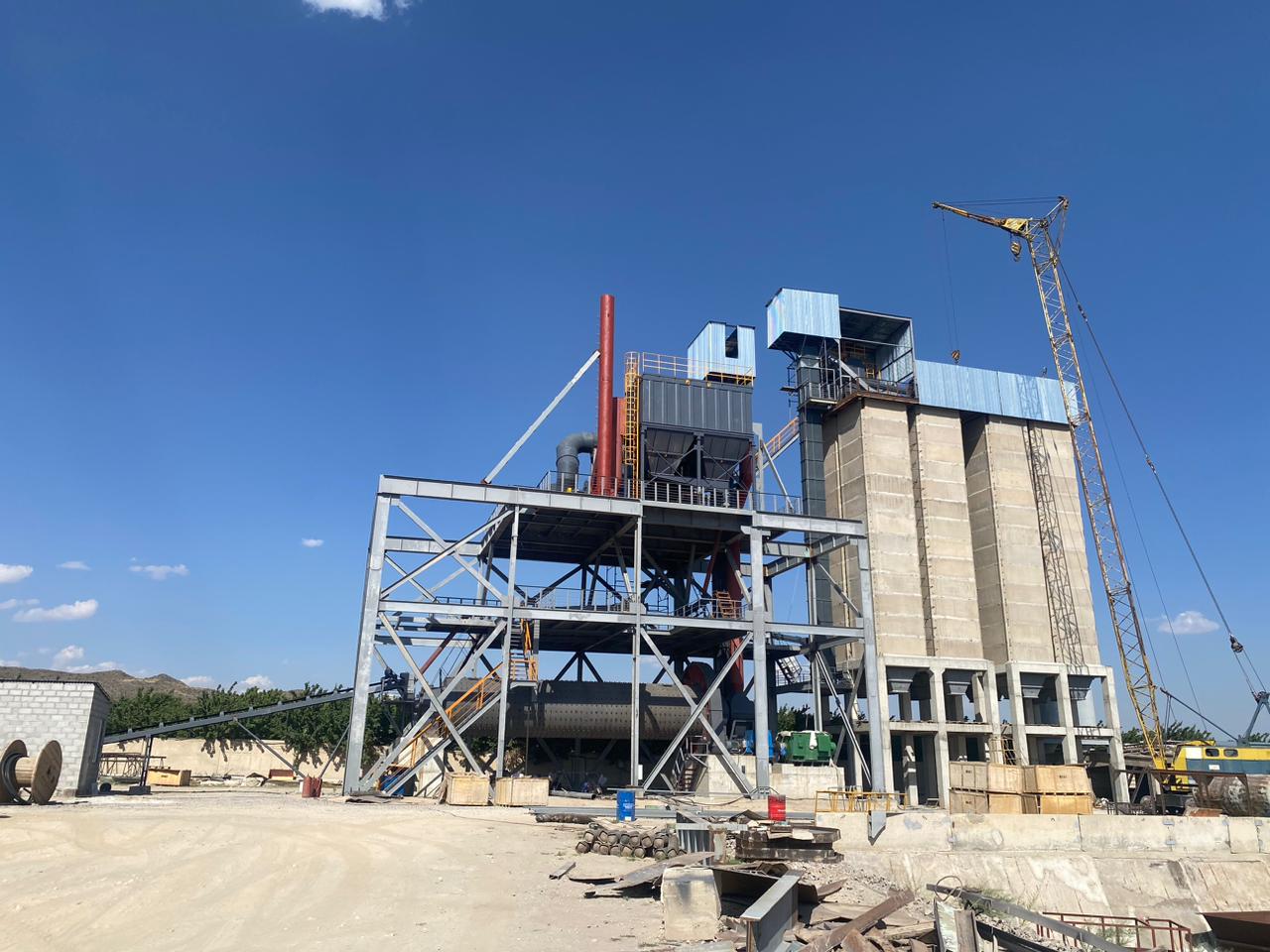

Ball Mill

May be evaluated for mineral grinding circuits where the process and product specification suit ball-mill technology.

Assess material and circuit design.
Define product size and plant capacity.

Explore the Liming Heavy Industry product range for equipment information.

05 · Project references

Mineral Grinding Project References

These project photographs show real mineral-processing installations and equipment. Project-specific material, capacity and scope should be stated alongside each image only where confirmed.

Project reference

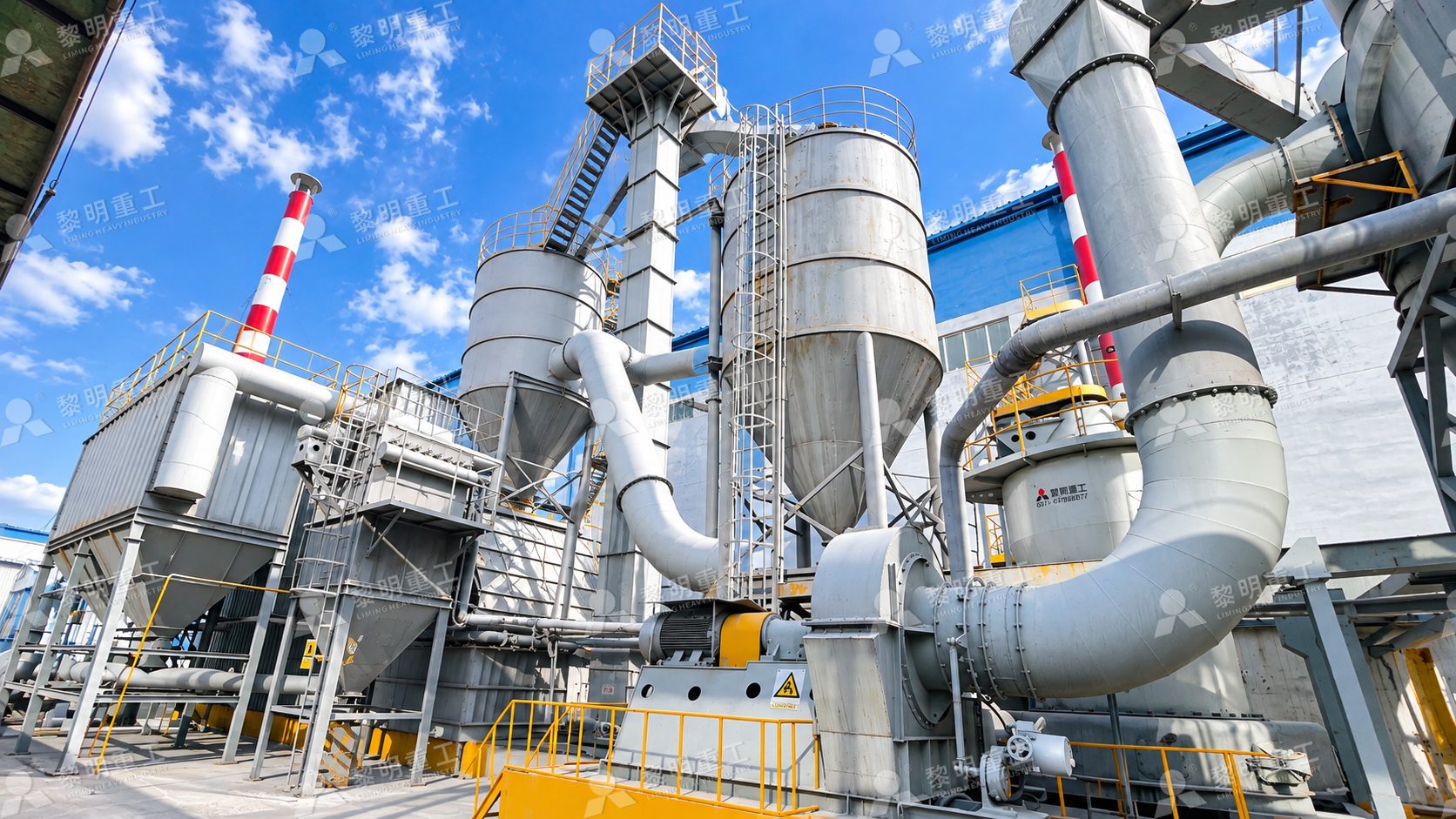

Mineral Grinding Plant

Site overview of a mineral powder production installation.

Project reference

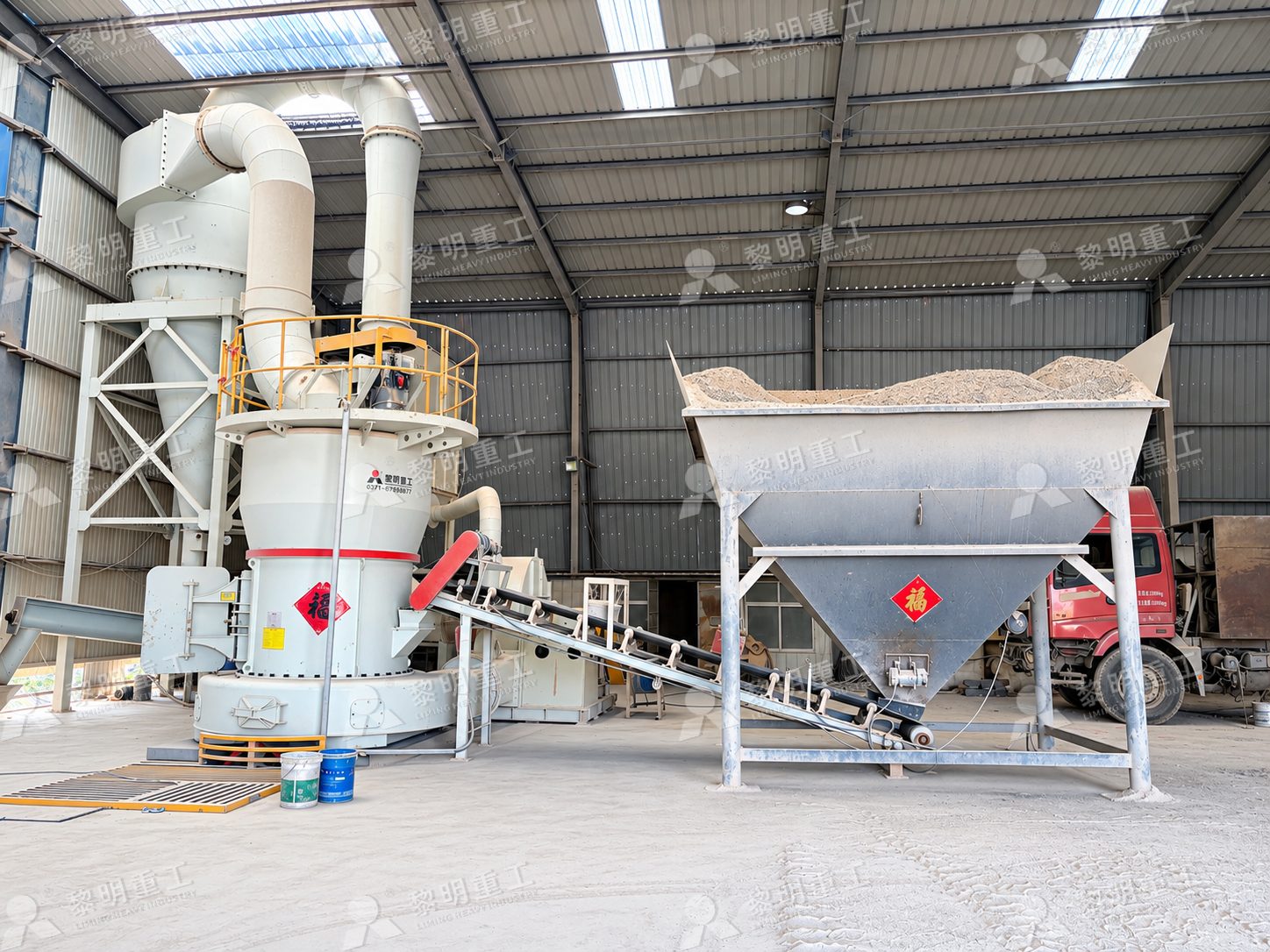

Grinding Mill Workshop

Equipment and plant arrangement in a grinding workshop.

Project reference

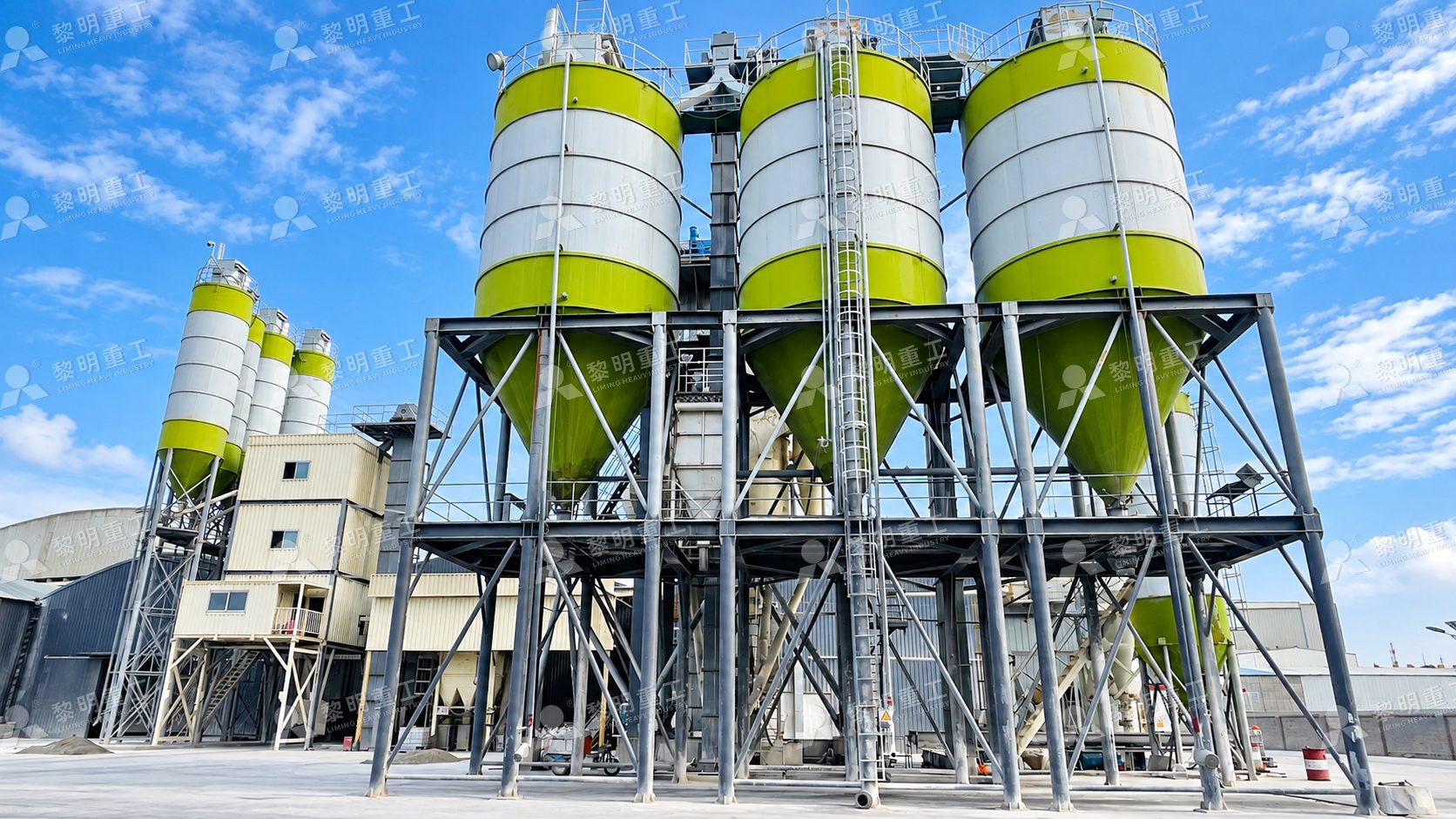

Powder Collection and Handling

Powder collection or transfer equipment within a mineral-processing plant.

06 · Plant integration

A Grinding Line Includes More Than the Mill

Stable operation also depends on the feeding, collection, transfer and control systems around the mill. Their configuration should match the project layout and operating requirements.

Feeding and conveying
Classification
Dust collection
Powder storage
Product transfer
Electrical control

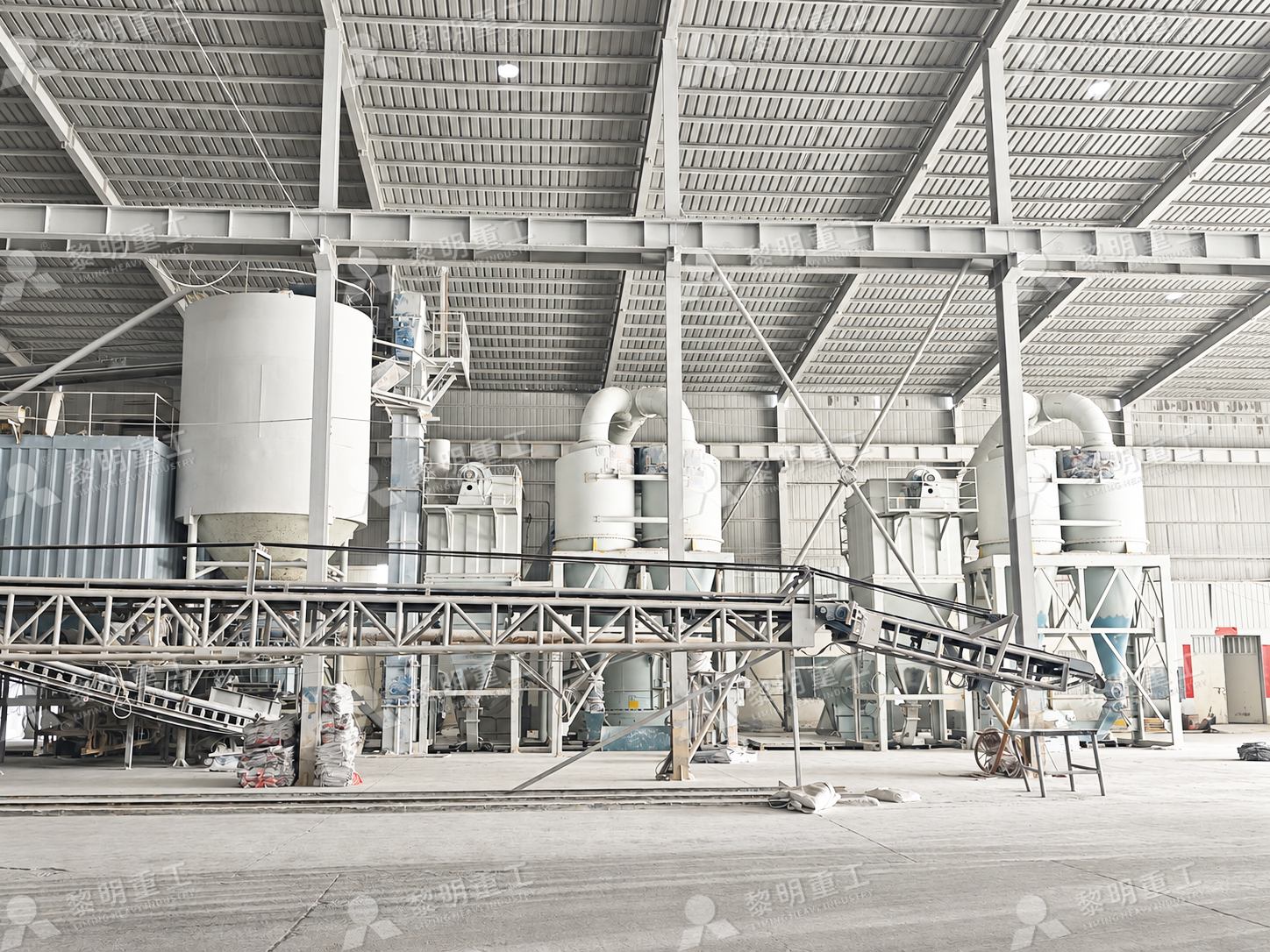

Auxiliary equipment in a mineral powder processing plant — Auxiliary systems are configured to suit the process and site.

08 · Related articles

Mineral Powder Processing Articles

Explore practical guides to mineral raw materials, grinding technology and powder quality for wall putty applications.

01Calcium Carbonate for Wall Putty: Properties and Applications 02Limestone Powder for Wall Putty: Processing Considerations 03Dolomite Powder in Wall Putty Formulations 04Talc and Kaolin: Mineral Filler Selection 05How Powder Fineness Affects Wall Putty Performance 06Understanding Particle-Size Distribution in Mineral Powders 07How to Select a Grinding Mill for Wall Putty Minerals 08MTW and LM Mills: Key Selection Factors 09Ultrafine Mineral Powder: When Is It Required? 10When Does Mineral Powder Processing Need Drying? 11Dust Collection in Mineral Grinding Plants 12Mineral Grinding Plant: Project Planning Checklist

07 · FAQ

Wall Putty Mineral Powder Processing: FAQs

Which minerals are used in wall putty powder?

Formulations vary. Calcium carbonate and other mineral fillers may be used, while dolomite, talc, kaolin or other minerals may be relevant to particular formulations. They are not interchangeable; confirm the formulation and material specification.

How do I choose a grinding mill?

Provide the mineral name and grade, feed size, moisture if known, target fineness or particle-size distribution, required capacity and project location. These data help determine which mill configurations should be evaluated.

Does every raw material need crushing before grinding?

No. Crushing is needed only when the incoming material is too large for the selected mill. The required feed size depends on the mill model and process configuration.

Is drying included in a mineral grinding line?

Not automatically. Drying depends on incoming moisture, the material and the required operating conditions. If needed, it should be specified as a separate process stage.

Are grinding and calcination the same process?

No. Grinding reduces particle size. Calcination or other thermal treatment changes a material through controlled heating and requires suitable thermal equipment when the product specification calls for it.

Can one mill process all minerals used in wall putty?

Not necessarily. Mineral hardness, abrasiveness, moisture, particle structure and target product properties differ. Equipment and process settings must be reviewed for the specific material.

What project information should I prepare?

Share the material and grade, feed size, moisture if available, target fineness, hourly capacity, project country and whether the project is a new plant or an upgrade. A representative material analysis can help where properties are uncertain.
